Description

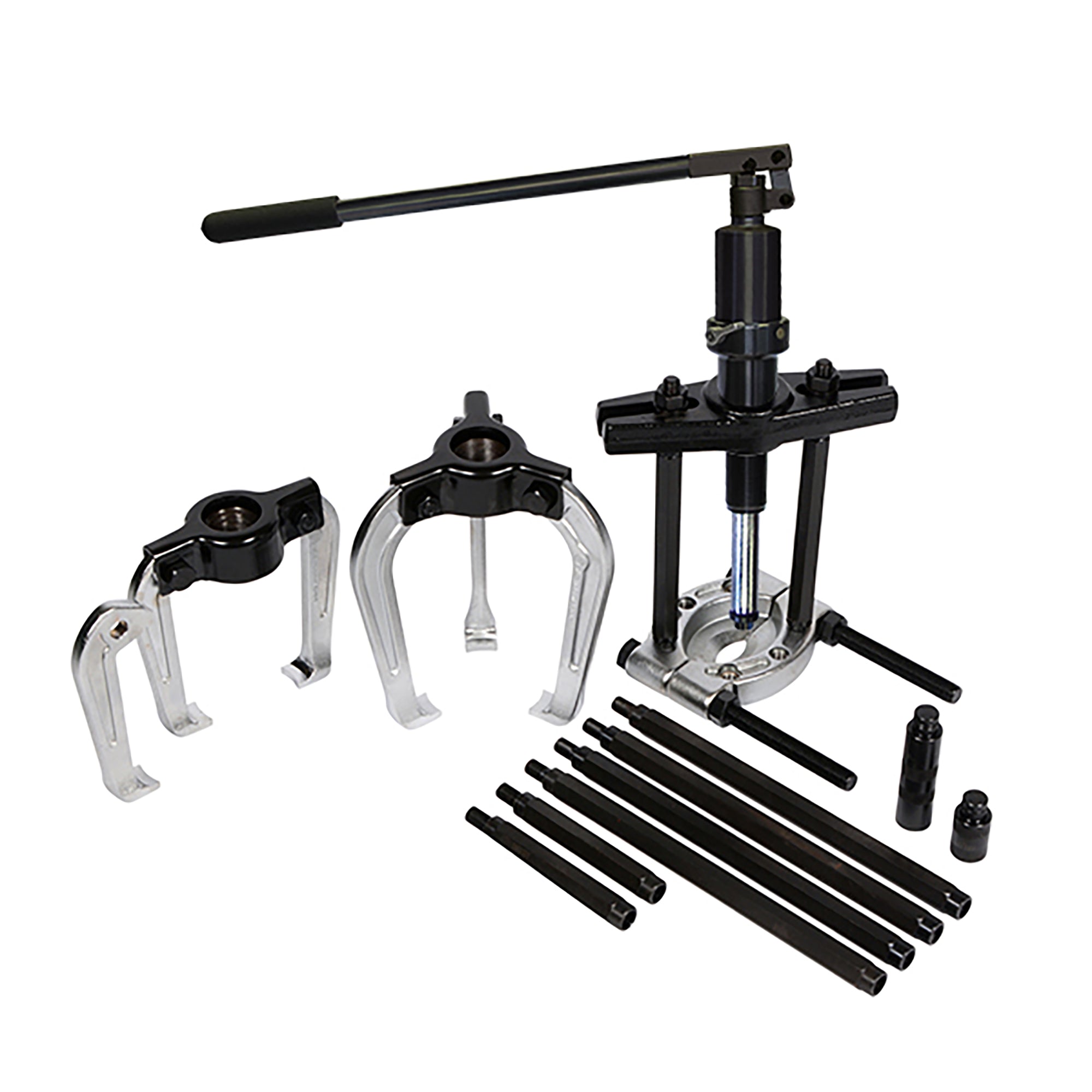

This advanced Hydraulic Puller & Separator Kit from the 1500 Series features the high-performance 150000XT Extra Travel Hydraulic Ram, designed to provide extended reach and faster operation - all within a rugged, lockable metal case. Engineered for both automotive and industrial applications, this kit delivers 8 tonnes of pulling force while ensuring streamlined, safe operation.
Key Features:
- Advanced Extra Travel Ram: The 150000XT delivers 85 mm of extra travel, cutting down setup time and boosting operational speed by up to 4× faster compared to the standard 1500 Series ram
- Built-In Protection: Features a pressure relief valve that activates at 8 tonnes of force to prevent overload and ensure operator safety.
- Versatile Puller Configurations: Build four different twin or triple‑leg pullers, plus the included bearing separator, for maximum adaptability.
- Reliable Performance: Generates up to 8 tonnes of hydraulic pulling force, suitable for gears, bearings, pulleys, and sprockets across both automotive and industrial applications.
Equivalent to TMHP 10E TMHC 110E
Dimensions:
- Puller Spread Min - Max: 50-150mm
- Puller Reach Max: 150mm
- External Spread Min - Max: 20-105mm
- External Reach Max: 876mm
More about the 150000XT Extra Travel Ram
- Measurable 8 tonnes of pressure capacity
-
85 mm of travel allows for reduced setup time and fewer repositioning steps
-
4× faster output operation compared to the standard 1500 Series ram
-
360° removable handle for use in tight or awkward spaces
-
Integrated pressure relief control valve opens precisely at 8 tonnes and cannot be overloaded
-
Oil hydraulics work in any position - including upside down
-
Piston with spring return for faster resetting between pulls
-
Fully compatible with the 1500 Series Puller Range using the 8 tonne hydraulic ram system
Contents:
