Hub And Stud Pullers

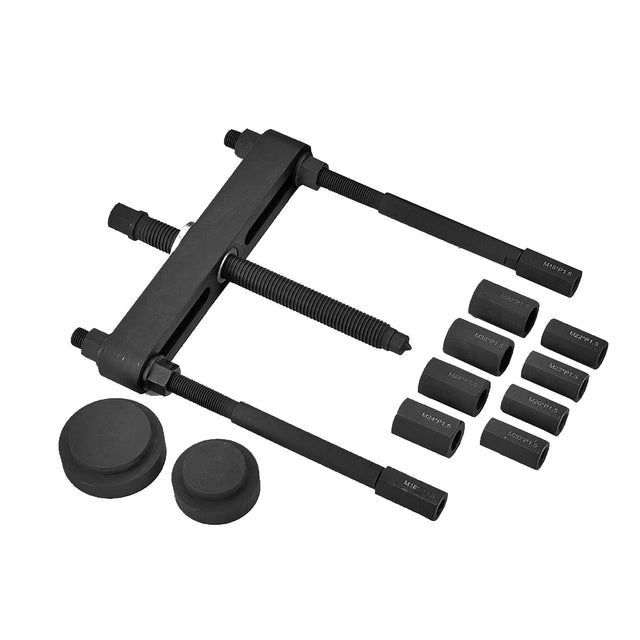

When servicing heavy goods vehicles (HGVs), wheel hubs can become stubbornly stuck due to corrosion, wear, or high bolt tension. The Sykes‑Pickavant HGV Hub Puller Kit (21027500) is meticulously designed to safely extract hubs without risking damage to the vehicle or the technician. Its universal adaptability, wide pitch circle coverage, and multiple thread adaptors make it indispensable for efficient, safe, and professional workshop operations. Universal Wheel Hub Extractor: Compatible with a broad range of HGV wheel hubs across manufacturers. Adjustable to Accommodate Pitch Circle Diameters up to 445 mm: Provides flexibility for a wide variety of wheel sizes and configurations. Thread Adaptors for Multiple Wheel Stud Types: Includes six pairs: M18 × 1.5 M20 × 1.5 M22 × 1.5 M24 x 1.5 M30 x 1.5 7/8" – 11 BSF Why This Tool Is Required Avoid Damage & Ensure SafetyManually removing hubs using makeshift tools can result in rounding bolts, dented surfaces, or injuring technicians. The robust design of this kit ensures force is applied evenly and safely. Versatility and EfficiencyThe wide pitch circle allowance and varied adaptors mean you don’t need to carry numerous pullers for different vehicle makes - one kit handles multiple tasks swiftly. Time and Cost SavingsDesigned for quick, reliable extraction, this tool minimizes workshop downtime and labor costs. Its long reach and mechanical strength speed up removal processes. Durable, Heavy-Duty DesignBuilt to withstand harsh, high-torque conditions typical in HGV maintenance, it offers long service life and reliability in demanding environments. Technical Specs Kit Number: 21027500 Pitch Circle Diameter Range: Variable, up to 445 mm Thread Adaptors Included: M18, M20, M22, M24, M30 (all × 1.5 mm × 65 mm length), plus 7/8" × 11 BSF Compatible Vehicles: Commonly used with DAF, MAN, Mercedes‑Benz, Renault, Scania, and Volvo models Optional Extra Extend the functionality of your 21027500 by adding the 21027600 - Add-on Puller Set - converting it into a versatile conventional puller that handles a wider range of workshop tasks.

Read more less

The Sykes Pickavant Hub Puller range comprises of a wide variety of puller types, all using interchangeable components - whether Hydraulic, Impact or Mechanical, all parts can be used in more than one format, thus providing flexible pulling options and value for money. The hub pullers are designed to be used with 12731100 Impact force screw, 150000V2 or 180000V2 Hydraulic Rams or can be used with a slide hammer (08520900*) for greater impact force (*will require adaptor 08531270). The hub puller can be used on a variety of wheel stud pattern applications - 4, 5, 6 stud hubs, with a pitch circle up to 203mm and can be used in 3, 4 or 5 leg combinations Contents: 180000V2 - 1800 Series 12 Tonne Hydraulic Ram 5 Legs & body Specification Leg reach: 160 mm Spread capacity: 100-180 mm Stud hole diameter: 18mm  Impact screw / hydraulic ram thread: 1.1/2" BSW Puller plate thread 1.1/2" BSW

Read more less

The Sykes Pickavant Hub Puller range comprises of a wide variety of puller types, all using interchangeable components - whether Hydraulic, Impact or Mechanical, all parts can be used in more than one format, thus providing flexible pulling options and value for money. The hub pullers are designed to be used with 12731100 Impact force screw, 150000V2 or 180000V2 Hydraulic Rams or can be used with a slide hammer (08520900*) for greater impact force (*will require adaptor 08531270). The hub puller can be used on a variety of wheel stud pattern applications - 4, 5, 6 stud hubs, with a pitch circle up to 203mm and can be used in 3, 4 or 5 leg combinations. Contents: 5 Legs & body   Specification Leg reach: 160 mm Spread capacity: 100-180 mm Stud hole diameter: 18mm  Puller plate thread 1.1/2" BSW

Read more less

The Sykes Pickavant Hub Puller range comprises of a wide variety of puller types, all using interchangeable components - whether Hydraulic, Impact or Mechanical, all parts can be used in more than one format, thus providing flexible pulling options and value for money. The hub pullers are designed to be used with 12731100 Impact force screw, 150000V2 or 180000V2 Hydraulic Rams or can be used with a slide hammer (08520900*) for greater impact force (*will require adaptor 08531270). The hub puller can be used on a variety of wheel stud pattern applications - 4, 5, 6 stud hubs, with a pitch circle up to 203mm and can be used in 3, 4 or 5 leg combinations Contents: 12731100 - Impact Force Screw 5 Legs & body Specification Leg reach: 160 mm Spread capacity: 100-180 mm Stud hole diameter: 18mm  Impact screw / hydraulic ram thread: 1.1/2" BSW Puller plate thread 1.1/2" BSW

Read more less

The Sykes Pickavant 08520800 Hub Puller Plate is engineered for universal application, featuring 8 slots for extended compatibility.  With a 145mm diameter and a stud range of 84-140mm, it ensures a secure fit for various tasks. Master Kit Contents: Hub Puller Plate: 08520800 8 Slots | Diameter 145mm | Stud Range: 84-140mm 12T Hydraulic Ram: 180000V2 Hydraulic power gives more power with less effort to aid in the removal of stubborn or seized hubs 5Kg Slide Hammer: 08520900 Effective in confined spaces; ideal for freeing tightly fitted hubs by delivering repeated, controlled impact force (includes adaptor required for use with slide hammer) Mechanical Force Screw: 12731100 allows for gradual, controlled application of force, reducing the risk of damaging components Metal Storage Tin: To store all your kit components

Read more less

Universal hub puller plate with 8 slots for maximum coverage Plate Diameter 145mm Stud Range 84-140mm Supplied with 12731100 force screw, suitable for use with air tool  (Ensure force screw is well lubricated before use)

Read more less

The Sykes Pickavant 08520800 Hub Puller Plate is engineered for universal application, featuring 8 slots for extended compatibility.  With a 145mm diameter and a stud range of 84-140mm, it ensures a secure fit for various tasks. Kit Contents: Hub Puller Plate: 08520800 8 Slots | Diameter 145mm | Stud Range: 84-140mm 5Kg Slide Hammer: 08520900 Effective in confined spaces; ideal for freeing tightly fitted hubs by delivering repeated, controlled impact force (includes adaptor required for use with slide hammer) Optional Extras 12T Hydraulic Ram: 180000V2 Hydraulic power gives more power with less effort to aid in the removal of stubborn or seized hubs Mechanical Force Screw: 12731100 allows for gradual, controlled application of force, reducing the risk of damaging components

Read more less

Universal hub puller plate with 8 slots for maximum coverage. Plate Diameter 145mm Stud Range 84-140mm Supplied with 180000V2 - 12T ram for hydraulic removal where more power is required (Ensure Ram is well lubricated before use)

Read more less

The Sykes Pickavant Hub Puller range comprises of a wide variety of puller types, all using interchangeable components - whether Hydraulic, Impact or Mechanical, all parts can be used in more than one format, thus providing flexible pulling options and value for money. The hub pullers are designed to be used with 12731100 Impact force screw, 150000V2 or 180000V2 Hydraulic Rams or can be used with a slide hammer (08520900*) for greater impact force (*will require adaptor 08531270). The hub puller can be used on a variety of wheel stud pattern applications - 4, 5, 6 stud hubs, with a pitch circle up to 203mm and can be used in 3, 4 or 5 leg combinations** Contents: 180000V2 - 1800 Series 12 Tonne Hydraulic Ram 3 Legs & body Specification Leg reach: 160 mm Spread capacity: 100-180 mm Stud hole diameter: 18mm  Impact screw / hydraulic ram thread: 1.1/2" BSW Puller plate thread 1.1/2" BSW *extra legs required for 4 & 5 leg combinations, - 12741000 **will require adaptor 08531270

Read more less

Tapered collets thread onto stud, even where only a few threads are exposed The collet is drawn into the housing and clamped onto stud by tightening the housing bolt Reduces possibility of damage to stud threads Prevents shearing or damaging stud/ workpiece by avoiding bottoming or shouldering studs 6 collet sizes; 6mm, 8mm, 10mm, 12mm, 14mm & 16mm

Read more less

For the extraction of tapped dowels from their location holes Kit includes Slide Hammer & Adaptors  Contents: M10 Slide Hammer  (400g Weight) M4 Adaptor M5 Adaptor M6 Adaptor M8 Adaptor

Read more less

The Sykes Pickavant Hub Puller range comprises of a wide variety of puller types, all using interchangeable components - whether Hydraulic, Impact or Mechanical, all parts can be used in more than one format, thus providing flexible pulling options and value for money. The hub pullers are designed to be used with 12731100 Impact force screw, 150000V2 or 180000V2 Hydraulic Rams or can be used with a slide hammer (08520900*) for greater impact force (*will require adaptor 08531270). The hub puller can be used on a variety of wheel stud pattern applications - 4, 5, 6 stud hubs, with a pitch circle up to 203mm and can be used in 3, 4 or 5 leg combinations**  Contents: 3 Legs & body Specification Leg reach: 160 mm Spread capacity: 100-180 mm Stud hole diameter: 18mm  Puller plate thread 1.1/2" BSW   **extra legs required for 4 & 5 leg combinations 12741000

Read more less

The Sykes Pickavant Hub Puller range comprises of a wide variety of puller types, all using interchangeable components - whether Hydraulic, Impact or Mechanical, all parts can be used in more than one format, thus providing flexible pulling options and value for money. The hub pullers are designed to be used with 12731100 Impact force screw, 150000V2 or 180000V2 Hydraulic Rams or can be used with a slide hammer (08520900*) for greater impact force (*will require adaptor 08531270). The hub puller can be used on a variety of wheel stud pattern applications - 4, 5, 6 stud hubs, with a pitch circle up to 203mm and can be used in 3, 4 or 5 leg combinations** Contents: 12731100 - Impact Force Screw 3 Legs & body Specification Leg reach: 160 mm Spread capacity: 100-180 mm Stud hole diameter: 18mm  Impact screw / hydraulic ram thread: 1.1/2" BSW Puller plate thread 1.1/2" BSW **extra legs required for 4 & 5 leg combinations, - 12741000

Read more less

For the extraction of tapped dowels from their location holes Kit includes Slide Hammer & Adaptors  Contents: ½" UNF Slide Hammer (1 Kg weight) 3/8" Convertor 5/8" Convertor M6 x 1mm Adaptor M8 x 1.25mm Adaptor M10 x 1.5 Adaptor M12 x 1.75mm Adaptor M14 x 2mm Adaptor M16 x 2mm Adaptor M18 x 2.5 Adaptor M20 x 2.5mm Adaptor Adaptor Configuration

Read more less
